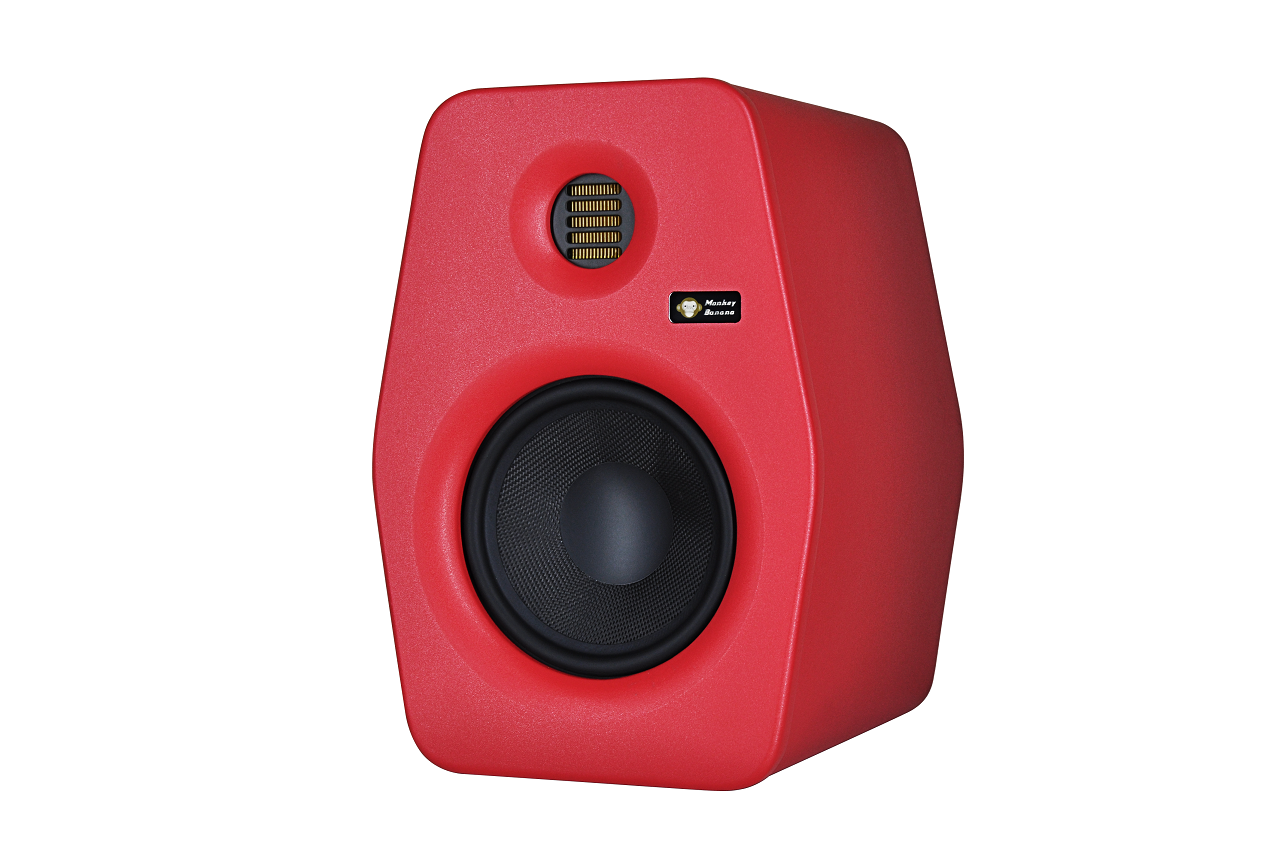

Baboon 6 – active studio monitor red
- Label: Monkey Banana
- Cat No: BABOON 6 RED
The Baboon 6 is an active studio monitor with an air motion transformer tweeter and a special Kevlar woofer. The Baboon 6 has been developed to enable you to judge the mix better, especially when mastering and mixing, due to even higher resolution in the high frequency range. The Baboon 6 is an ideal monitoring solution for professional recording- and mastering studios and discriminating Hi-Fi-pleasure.
A 6.5“ woofer with Kevlar weave and a 7.4“ AMT-tweeter are used. The amplification power of the bi-amp-module is 60 watts for the low frequency range and 30 watts for the high-frequency range.
Specifications
|
Woofer: |
6 1/2 inch kevlar membrane |
|
Tweeter: |
4750mm² air motion transformer (AMT) |
|
Frequency range: |
50 Hz–30 kHz |
|
HF-Level: |
-6dB ~ +6 dB adjustable at 10kHz |
|
LF-Level: |
-6dB ~ +6 dB adjustable at 100Hz |
|
Crossover frequency: |
3kHz |
|
LF – amplification power: |
50W |
|
HF – amplification power: |
30W |
|
Level HF / LF: |
90dB / 95dB |
|
THD + N at rated output HF / LF: |
0.02% / 0.05% |
|

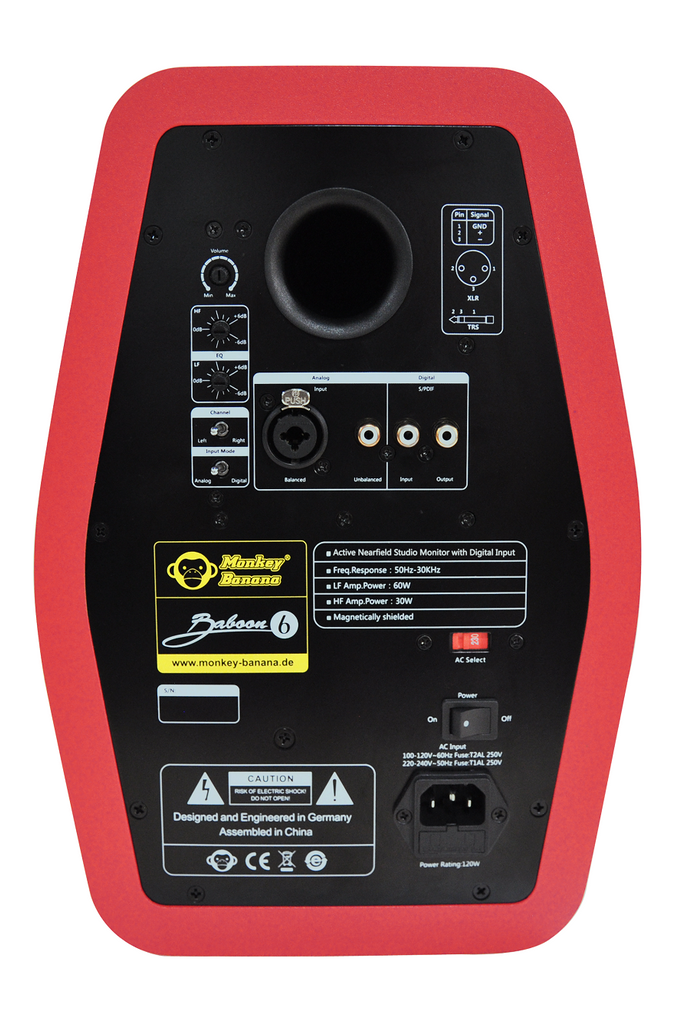

Inputs: |
XLR/cinch - Neutrik® combo connectors, cinch, S/PDIF – cinch input for digital signals |
|
Outputs: |
S / PDIF – cinch output for digital signals |
|
Input selection switch: |
analogue or digital |
|
channel selection switch: |
Left or right (in digital mode) |
|
Input impedance: |
20 kOhm balanced, 10 kOhm unbalanced |
|
Input sensitivity: |
+4 dBu (Balanced), -10dBV (unbalanced) |
|
Available colours: |
red, black |
|
Shipping weight: |
9.1 kg / 20lb |
|
Weight: |
7.6 kg / 16.7lb |
|
Pack size: |
L365 x W322 x H449 mm |
|
Measurements: |
L260 x W229 x H328 mm |
