Ortofon Stylus MkII DJ (Blue/Orange) for MkII DJ Cartridge

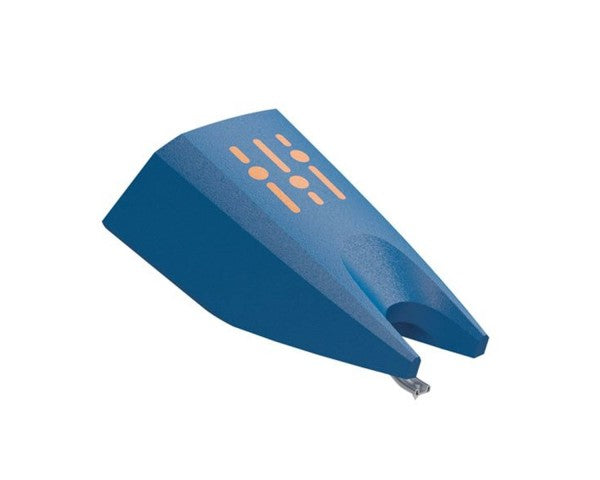

Stylus MkII DJ (Blue/Orange) for MkII DJ Cartridge

The Stylus MkII DJ  offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

Main Features

• Stylus MkII DJ
• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut-out

Product Specifications

General

• Output voltage at 1000Hz, 5cm/sec.: 6 mV
• Channel balance at 1kHz: 1 dB
• Channel separation at 1kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-20.000 Hz
• Tracking ability at 315 Hz at recommended tracking force: 100 μm
• Compliance, dynamic lateral: 14 μm/m N
• Stylus type: Spherical R 18 μm

Physical & Dimensions

• Tracking force range: 3-5g
• Tracking force recommended: 4g
